Guriga Konteenarka ee Musqulaha Dumarka

Sharaxaad Gaaban:

Naqshadeynta guriga musqulaha dumarka ee guryaha GS waa mid bani-aadminimo.Guriga waa la rari karaa guud ahaan, ama waa la rari karaa oo la dhaqaajin karaa ka dib marka la kala diro, ka dibna mar kale la isugu keeno goobta oo la isticmaalo ka dib marka lagu xiro biyaha iyo korontada.


porta cbin (3)
porta cbin (1)
porta cbin (2)
porta cbin (3)
porta cbin (4)

Faahfaahinta Alaabta

Tilmaamaha

Video

Tags Product

Naqshadeynta guriga musqulaha dumarka ee guryaha GS waa mid bani-aadminimo.Guriga waa la rari karaa guud ahaan, ama waa la rari karaa oo la dhaqaajin karaa ka dib marka la kala diro, ka dibna mar kale la isugu keeno goobta oo la isticmaalo ka dib marka lagu xiro biyaha iyo korontada.

Alaabada nadaafadda ee guriga musqulaha dumarka ee caadiga ah waxaa ka mid ah 5pcs musqulo iyo haamaha biyaha, 1pcs saxan saxan iyo qasabad, 1pcs column basin iyo qasabado, gudaha tas-hiilaadka waxaa loo qaabayn karaa iyadoo loo eegayo shuruudaha mashruuca.

Intaa waxaa dheer, ballaca caadiga ah ee guriga qubeyska waa 2.4 / 3M, guri ka weyn ama yar ayaa la habeyn karaa.

Dumar-guriga-musqulaha-1

Xidhmada Alaabta Nadaafadda

Musqul-Deed-&-Qol-Musqul-4

Qaab-dhismeedka Heerka Sare

sawirka3

Qaabka sare

Iftiinka ugu weyn:
3.0mm qaro weyn oo galvanized ah oo qabow-duuban profile bir, wax: SGC340;
Sub-beam: wuxuu qaataa 7pcs birta galvanizing, walxaha: Q345B, dhexda: 755mm.
Dhumucda guryaha moodada ah ee suuqa waa 2.5-2.7mm, nolosha adeeggu waa qiyaastii 15 sano.Tixgeli mashruuca dibadda, dayactirku maaha mid ku habboon, waxaanu sii adkeynay birta guryaha, isticmaalka 20 sano ayaa la hubiyaa.

Qaabka hoose:

Iftiinka ugu weyn:
3.5mm qaro weyn oo galvanized ah oo qabow-duuban profile bir, wax: SGC340;
Beam-hoosaad: 9pcs "π" oo lagu qoray birta galvanizing, walxaha:Q345B,
Dhumucda guryaha moodada ah ee suuqa waa 2.5-2.7mm, nolosha adeeggu waa qiyaastii 15 sano.Tixgeli mashruuca dibadda, dayactirku maaha mid ku habboon, waxaanu sii adkeynay birta guryaha, isticmaalka 20 sano ayaa la hubiyaa.

sawirka4
sawirka5

Tiirarka:
3.0mm galvanized qabow profile bir giringiriyey, wax: SGC440, afar tiir ayaa la isweydaarsan karaa.
Tiiraryadu waxay ku xidhan yihiin qaabka sare iyo dhexda hoose oo leh boolal madax Hexagon ah (xoog: 8.8)
Hubi in xannibaadda dahaarka la buuxiyey ka dib marka la dhammeeyo rakibidda tiirarka.
Ku dar cajaladaha dahaadhka ah ee ka mid ah isgoysyada dhismayaasha iyo darbiyada derbiyada si looga hortago saameynta qabowga iyo buundooyinka kulaylka iyo hagaajinta waxqabadka ilaalinta kulaylka iyo badbaadinta tamarta.

Dabaqyada gidaarka:
Dhumucdiisuna: 60-120mm qaro weyn oo midab leh oo midab leh sandwich,
Guddiga dibadda: looxa dibadda wuxuu ka samaysan yahay 0.42mm qaabka diirka orange Alu-zinc saxan bir midab leh, daahan HDP,
Lakabka dahaadhka: 60-120 mm dhumucdiisuna tahay hydrophobic basalt dhogorta (ilaalinta deegaanka), cufnaanta ≥100kg/m³, waxqabadka gubashada waa Class A aan guban karin.
Qalabka gidaarka gudaha: Golaha gudaha wuxuu qaataa 0.42mm saafi ah Alu-zinc saxan bir midab leh, daahan PE, midab: cawl cad,

Hubiyay dahaarka kulaylka alaabta, waxqabadka dahaarka dhawaaqa.

sawirka6

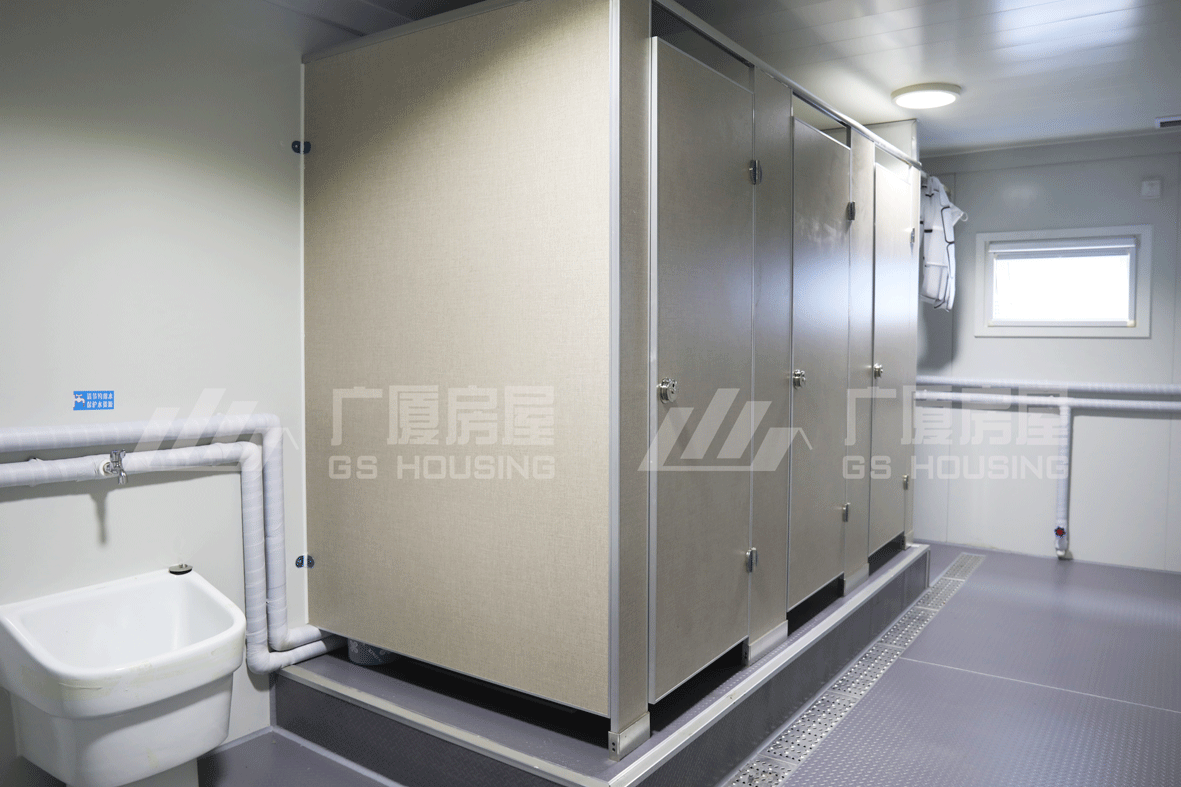

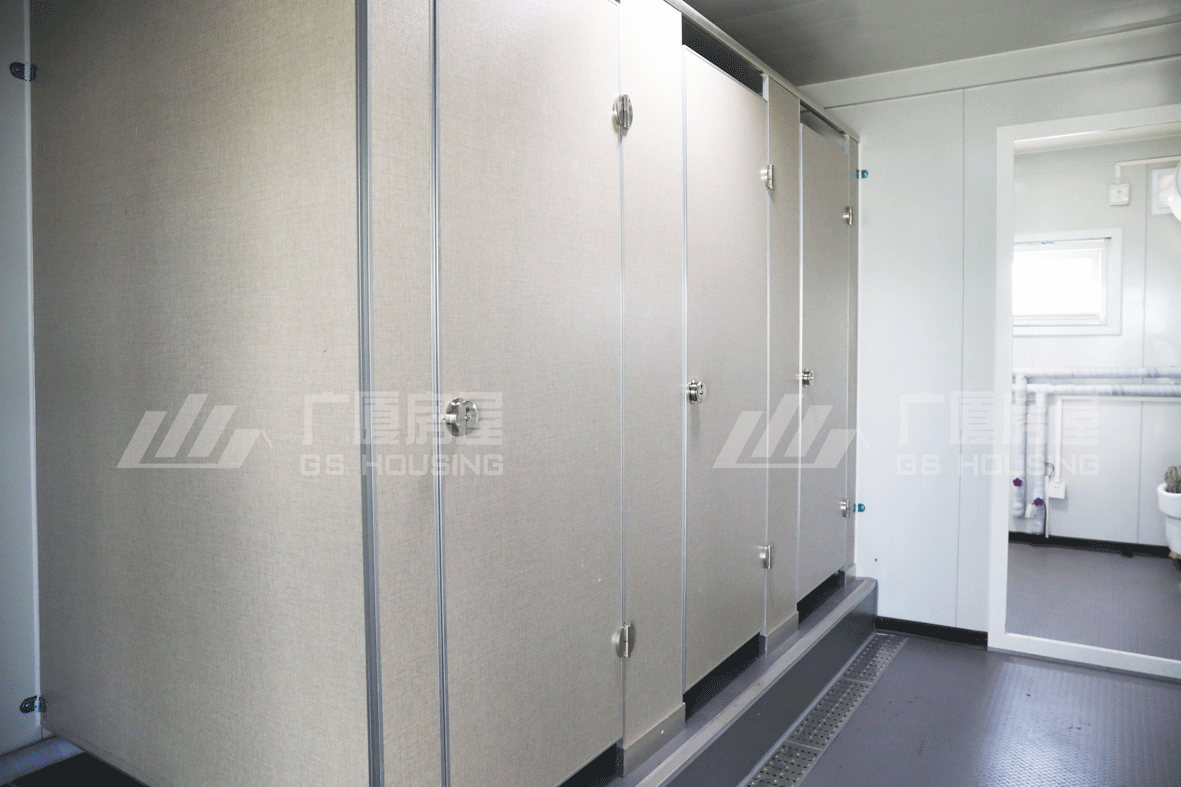

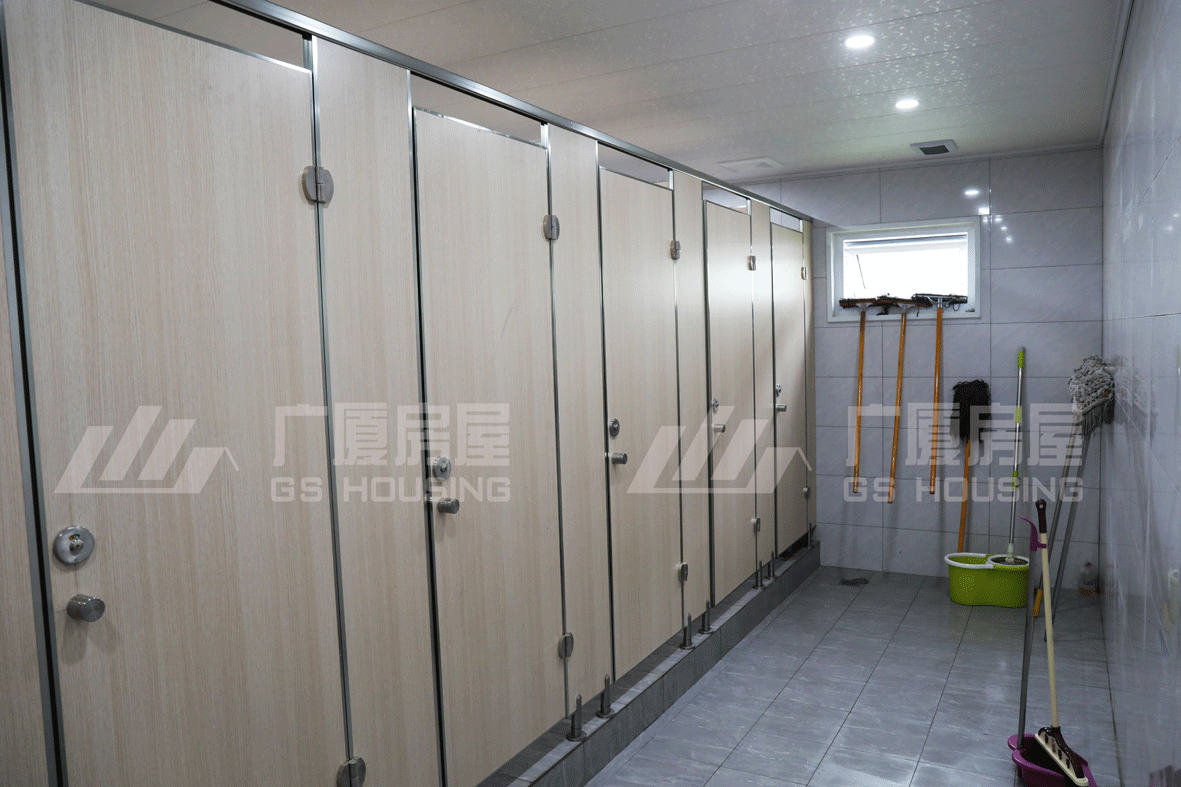

Codsiga Guryaha Musqulaha ee Dumarka

Ku rakibida guriga musqusha waa ka adag yahay guryaha caadiga ah, laakiin waxaan haynaa tilmaamaha rakibida iyo fiidiyowyada faahfaahsan, fiidiyowga khadka tooska ah ayaa lagu xiri karaa si uu uga caawiyo macaamiisha xallinta dhibaatada rakibidda, dabcan, kormeerayaasha rakibaadda ayaa loo diri karaa goobta. haddii loo baahdo.

Musqul-Deed-&-Qol-Musqul-3

Waxaa jira in ka badan 360 shaqaale ah oo ku rakiba guryaha GS guryaha, in ka badan 80% waxay ka shaqeeyaan Guryeynta GS in ka badan 8 sano.Hadda waxay si habsami leh u rakibeen in ka badan 2000 oo mashruuc.

Saldhigyada Wax-soo-saarka Hordhac

Shanta saldhig ee wax soo saarka ee GS Housing waxay leeyihiin awood wax soo saar sanadle ah oo dhamaystiran oo ka badan 170,000 oo guri, awoodaha wax soo saarka iyo hawlgalinta xoogan ee xoogan waxay siinayaan taageero adag wax soo saarka guryaha.Iyo sidoo kale warshadaha loogu talagalay la nooca beerta, deegaanka waa mid aad u qurux badan, Waxay yihiin baaxad weyn oo cusub oo casri ah saldhig wax soo saarka dhismaha modular ee Shiinaha.Machad gaar ah oo cilmi baaris guriyeynta modular ah ayaa la aasaasay si loo hubiyo in ay siiso macaamiisha meel ammaan ah, deegaan ahaan, saaxiibtinimo, caqli iyo raaxo leh oo isku dhafan oo dhismo ah.

天津工厂

Saldhig warshad-soo-saarka smart ee Tianjin

Daboolista: 130,000㎡

Awoodda wax-soo-saarka sannadlaha ah: 50,000 oo guryo dejisan

常熟工厂

Warshada nooca beerta- saldhiga wax soo saarka ee Jiangsu

Daboolista: 80,000㎡

Awoodda wax-soo-saarka sannadlaha ah: 30,000 oo guryo dejisan

佛山工厂

6S warshad model- saldhigga wax soo saarka ee Guangdong

Daboolista: 90,000 ㎡

Awoodda wax-soo-saarka sannadlaha ah: 50,000 oo guryo dejisan

沈阳工厂

Saldhig warshadeed oo hufan oo ku taal Liaoning

Daboolista: 60,000㎡

Awoodda wax-soo-saarka sannadlaha ah: 20,000 oo guryo dejisan.

成都工厂

Saldhig warshadeedka-soosaarka deegaanka ee Sichuan

Daboolista: 60,000㎡

Awoodda wax-soo-saarka sannadlaha ah: 20,000 oo guryo dejisan.

Guryeynta GS waxay leedahay khadadka wax soo saarka guryaha ee casriga ah, oo ay ku jiraan khadadka wax soo saarka guddiga isku dhafan ee si toos ah, Graphene electrostatic khadadka daahan, aqoon-is-weydaarsiyo madaxbannaan, albaabbada iyo daaqadaha, aqoon-is-weydaarsiyo mashiinka, shirarka shirarka, mashiinnada goynta ololka ee CNC, iyo goynta laser mishiinada, portal mashiinada alxanka arc arc, alxanka kaarboon dioxide alxanka, mashiinada feerka awoodda sare leh, mashiinada samaynta qabow qabow, mishiinada wax lagu shiida, CNC foorarsiga iyo mishiinada dhogorta iwm. Wax soo saarka CNC, kaas oo hubiya in guryuhu soo saaray waqti, hufan oo sax ah.

guriga jaranjarada-09

  • Hore:
  • Xiga:

  • Tilmaamaha guriga musqulaha dumarka
    Tilmaamaha L*W*H (mm) Xajmiga dibadda 6055*2990/2435*2896
    Cabbirka gudaha 5845*2780/2225*2590 cabbir gaar ah ayaa la bixin karaa
    Nooca saqafka Saqafka fidsan oo leh afar tuubooyin biyo-mareen ah oo gudaha ah (Xajmiga isku-tallaabta-tuubada: 40*80mm)
    Bakhaar ≤3
    Taariikhda naqshadeynta Nolol adeeg oo nashqadeeyay 20 sano
    Culayska dabaqa ah 2.0KN/㎡
    Xamuulka saqafka nool 0.5KN/㎡
    Culayska cimilada 0.6KN/㎡
    Sersmic 8 darajo
    Qaab dhismeedka Tiirka Tilmaam: 210 * 150mm, Galvanized qabow bir duudduuban, t = 3.0mm Qalabka: SGC440
    Saqafka weyn ee looxa Tilmaam: 180mm, bir duuban qabow galvanized, t = 3.0mm Qalabka: SGC440
    Dabaqa weyn ee looxa Tilmaam: 160mm, bir duuban qabow galvanized, t = 3.5mm Qalabka: SGC440
    Saqafka saqafka sare Tilmaam:C100*40*12*2.0*7PCS
    Dabaqa hoose ee sagxadda Tilmaanta: 120 * 50 * 2.0 * 9pcs, "TT" qaab bir la riixay, t = 2.0mm Qalabka: Q345B
    Rinjiyeynta budada elektrostatic buufinta lacquer≥80μm
    Saqafka Qolka saqafka 0.5mm Zn-Al xaashi bir midabo leh oo dahaarka leh, cawl cad
    Qalabka dahaarka 100mm dhogor galaas ah oo leh hal al-foil.cufnaanta ≥14kg/m³, Heerka A Aan guban karin
    Saqafka V-193 0.5mm oo la riixay Zn-Al xaashi bir midab leh oo dahaarka leh, ciddi qarsoon, cawl cad
    Dabaq Oogada sagxada 2.0mm PVC guddiga, cawl madow
    Saldhig 19mm guddiga fiber cement, cufnaanta≥1.3g/cm³
    Lakabka aan qoyaanka lahayn Filim caag ah oo aan qoyaanka lahayn
    Saxan daboolida hoose 0.3mm Zn-Al looxa dahaarka leh
    Darbiga Dhumucda 75mm saxan sandwich ah oo midab leh oo midab leh;saxan dibadda ah: 0.5mm diirka orange aluminium plated zinc saxan bir midabo leh, fool maroodi, daahan PE;Saxanka gudaha: 0.5mm aluminium-zinc oo lagu dhejiyay saxan saafi ah oo bir midab ah, cawl cad, daahan PE;Qabo nooca "S" interface fur si aad u baabi'iso saamaynta qabow iyo buundada kulul
    Qalabka dahaarka dhogor dhagax, cufnaanta≥100kg/m³, Heerka A Aan guban karin
    Albaabka qeexid (mm) W*H=840*2035mm
    Qalab Xirmada birta
    Daaqada qeexid (mm) Daaqadda: WXH=800*500;
    Qalabka qaab-dhismeedka Bir baastada ah, 80S, Usha ka hortagga tuuganimada, Daaqad shaashad aan la arki karin
    Muraayadaha 4mm+9A+4mm laba galaas
    Koronto Voltage 220V ~ 250V / 100V ~ 130V
    Silig Siliga ugu weyn: 6㎡, AC silig: 4.0㎡, silig godka:2.5㎡, silig fur:1.5㎡
    jabiye Wareeg yar yar
    Iftiin Laambadaha goobada labalaabka ah,18W
    Socket 2pcs 5 godad godad 10A, 1pcs 3 godad AC godad 16A, 1pcs hal diyaarad isku xidha 10A, (EU /US ..standard)
    Biyaha & Nidaamka Biyo-mareenka nidaamka bixinta biyaha DN32, PP-R, Dhuumaha biyaha iyo qalabyada
    Nidaamka dheecaanka biyaha De110/De50, UPVC Dhuumaha biyo mareenka iyo qalabyada
    Qaabka birta Qalabka qaab-dhismeedka Dhuumaha labajibbaaran ee galvanized 口40*40*2
    Saldhig 19mm guddiga fiber cement, cufnaanta≥1.3g/cm³
    Dabaq 2.0mm qaro weyn oo aan simbiriirixan lahayn dabaqa PVC, cawl madow
    Qalabka nadaafadda Qalabka nadaafadda 5 musqulo iyo taangiyada biyaha, 1 saxan saxan iyo qasabad, 2 saxan oo tiir iyo qasabad
    Qaybin 1200 * 900 * 1800 Imitation Qaybta hadhuudhka alwaax, booska kaadhka aluminium aluminium, cidhifka birta ah
    Qalabaynta 1 pcs sanduuqa nudaha, 2 pcs muraayadaha musqusha, maroodiyada birta ah, shabaggeedii birta ah, 1 pcs biyo mareen dhulka taagan
    Kuwo kale Sare iyo tiir qurxin qayb 0.6mm Zn-Al xaashi bir midabka dahaarka leh, cad-cawlan
    Dubitaan 0.8mm Zn-Al midabka dahaarka leh ee birta gooyay, cad-cawlan
    Albaabka xidha 1 pcs albaabka dhow, aluminium (ikhtiyaar)
    taageere daaminta 1 pcs marawaxada qiiqa gidaarka, koofiyadda roobka ee birta ah
    Qabo dhismaha caadiga ah, qalabka iyo qalabyada ku rakiban waa waafaqsan heerka qaranka.sidoo kale, cabbirka la habeeyey iyo tas-hiilaadka la xidhiidha ayaa lagu bixin karaa hadba baahidaada.
